Event Flow in HTML

An event is a specific moment of interaction that occurs in a document or brower window and act as a bridge between JavaScript and DOM. Event Flow describes the order in which events are received from the page.

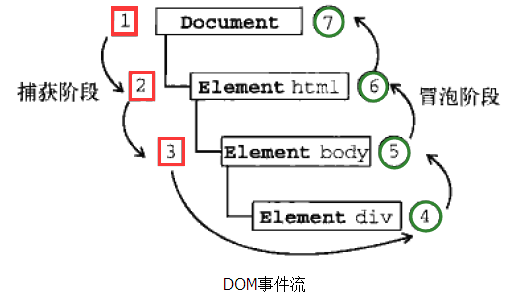

W3C Event Flow

The W3C specifies that the DOM event flow has three phases.

1. The event capture phase.
2. The in-target phase.
3. The event bubbling phase.

addEventListener

Syntax

target.addEventListener(type, listener [, options]);
target.addEventListener(type, listener [, useCapture]);

Parameters

• type (String)

  A case-sensitive string representing the event type to listen for.

• listener (Object, Function)

  An object that implements the EventListener interface, or a JavaScript function.

• useCapture (Boolean)

  The default value is false. If the value is false, the listener is executed during the bubbling phase. if true during the capture phase.

Events Executed Order

Capture stars at the outermost layer and bubbling from the response layer. But in the in-target phase, the order is determined by the code.

execute

// Event execution sequence is caputer -> aims -> bubble
// But the execution order in the aims is determined by the code order
const eventFlowPrint = (e, name, isCaputer) => {
  console.log(`${name}: ${isCaputer ? "Caputer" : "bubble"}`);
  // console.log(`${name}: ${isCaputer ? "Caputer" : "bubble"}`, e.target);
};

/*
	Code Order:
	page:			capture -> bubbling
	content:	bubbling -> capture
	buttom: 	bubbling -> capture
*/
const bindEventFlow = () => {
  // page
  document.getElementById("event_flow_page").addEventListener(
    "click",
    (e) => {
      eventFlowPrint(e, "page", true);
    },
    true
  );

  document.getElementById("event_flow_page").addEventListener(
    "click",
    (e) => {
      eventFlowPrint(e, "page", false);
    },
    false
  );

  // content
  document.getElementById("event_flow_content").addEventListener(
    "click",
    (e) => {
      eventFlowPrint(e, "content", false);
    },
    false
  );

  document.getElementById("event_flow_content").addEventListener(
    "click",
    (e) => {
      eventFlowPrint(e, "content", true);
    },
    true
  );

  // buttom
  document.getElementById("event_flow_buttom").addEventListener(
    "click",
    (e) => {
      eventFlowPrint(e, "buttom", false);
    },
    false
  );

  document.getElementById("event_flow_buttom").addEventListener(
    "click",
    (e) => {
      eventFlowPrint(e, "buttom", true);
    },
    true
  );
};

• Click Page

  page: Caputer
  page: bubble

• Click Content

  // In the in-target phase, the order is determined by the code.
  page: Caputer
  content: bubble
  content: Caputer
  page: bubble

• Click Buttom

  // In the in-target phase, the order is determined by the code.
  page: Caputer
  content: Caputer
  buttom: bubble
  buttom: Caputer
  content: bubble
  page: bubble

Event Agent

Event agent users the event bubbling to manage all events of a certain type by specifying only one event handler.

<ul id="list">
  <li>item 1</li>
  <li>item 2</li>
  <li>item 3</li>
  ......
  <li>item n</li>
</ul>

Bind the event to the tag ‘ul’ to manage the tag ‘li’ event. This reduces memory consumption and efficiency.
